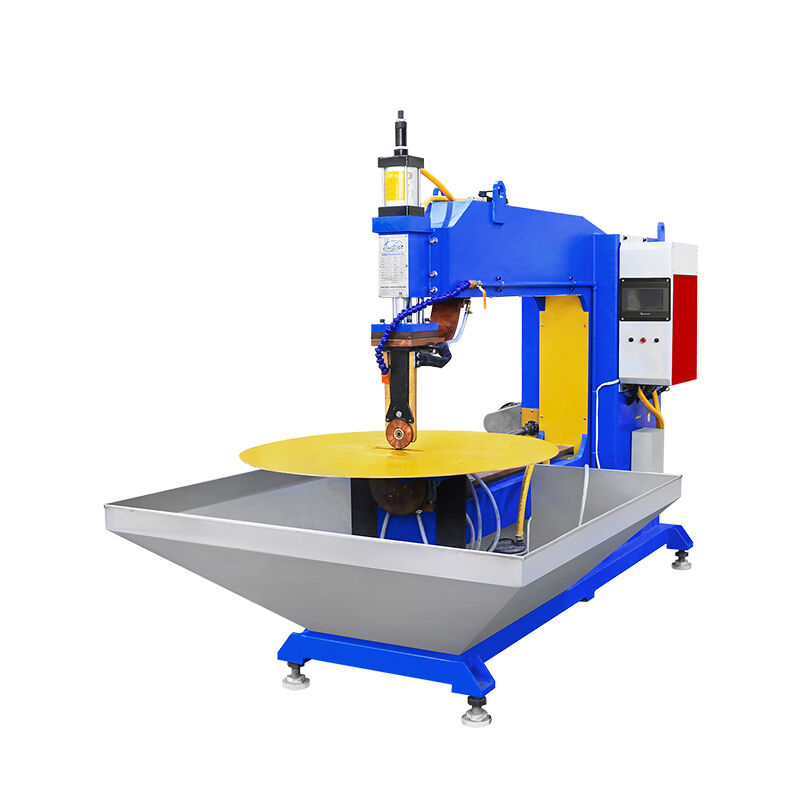

CNC X Y Axis Seam Welding Machine with PLC Control System for Stainless Steel Flange

Hwashi CNC X,Y Axis Square Tank Cover Seam Welding Machine utilizes seam welding technology, replacing spot welding electrodes with circular welding wheels. The system employs a rotation table for workpieces and automated programming for precise welding operations.

By inputting coordinate data, welding current, and other parameters, the machine automatically completes welding along preset tracks. Operators simply position the workpiece and remove it after welding completion. The system uses AC welding power source with a large flat platform lower electrode and servo motor-driven X and Y axis movement under programmed control.

The machine can store up to 16 welding models and features:

• Horizontal X-axis movement: ≤500mm
• Vertical Y-axis electrode movement: ≤300mm
• Suitable for tanks within 500x300mm range
• Welding material thickness: 0.5-1.5mm
• Total welding thickness: 1-3mm

Utilizes standardized welding electrodes with options for custom electrode molds and welding methods based on specific product requirements.

• Flexibility: Customizable for different sizes and shapes of steel wire baskets
• Strong Stability: High stability for long-term operation with reduced downtime
• Reliability: High-quality materials and components for extended service life
• Energy Efficiency: Energy-saving power systems and eco-friendly materials

We provide customized services with technical proposals developed based on your samples or drawings through direct engineering consultation.

• Sheet, barrel body, box and sealed thin-wall container welding
• Materials: Carbon steel, stainless steel, titanium, nickel and other materials
• Automotive fuel tanks, motorcycle dampers
• Temperature controller detectors, battery nickel straps
• Oil heaters, power capacitors, sieve iron baskets
• Water pump manufacturing, tin making, coopery industry

Manufactured with certified quality standards and comprehensive factory testing.
