Name: HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

خونه > محصولات > دستگاه جوش نقطه ای >

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

vertical type metal sheet spot welder,medium frequency inverter spot welding machine,spot welding machine with warranty

medium frequency inverter spot welding machine

spot welding machine with warranty

محل منبع:

چین

نام تجاری:

HWASHI

گواهی:

CE/CCC/ISO

شماره مدل:

WL-B-50K

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

استفاده:

جوش لب به لب

گارانتی:

12 ماه

قدرت:

75KVA

گواهی:

CE/CCC/ISO

عمر خدمات:

8-10 سال

آب خنک کننده:

30 لیتر در دقیقه

رنگ:

آبی ، مطابق درخواست مشتری.

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

قابل مذاکره

جزئیات بسته بندی

بسته چوبي با ارزش دريايي

زمان تحویل

7-30 روز کاری پس از دریافت پرداخت شما

شرایط پرداخت

L/C، T/T

قابلیت ارائه

50 مجموعه در هر ماه

محصولات مرتبط

ویدیو

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

بهترین قیمت رو بدست بیار

ویدیو

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

بهترین قیمت رو بدست بیار

ویدیو

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 75KVA Power

بهترین قیمت رو بدست بیار

ماشین جوش خودکار با مقاومت الکتریکی با ولتاژ ورودی 380 و قدرت 25 تا 75 کیلو وات

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+8613380655800

marketing@hwashi.com

حالا تماس بگیرید

توضیحات محصول

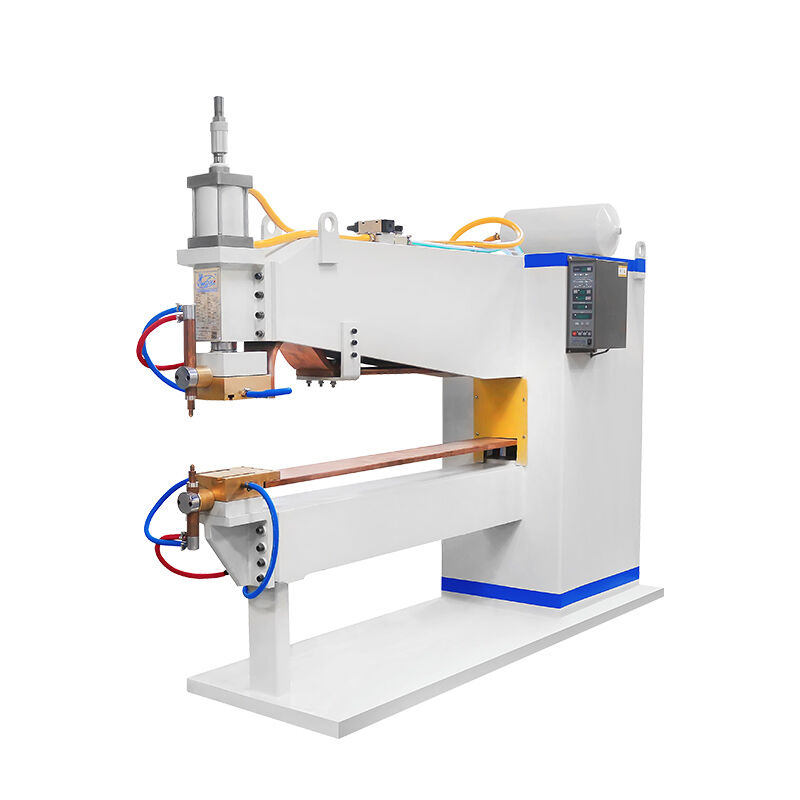

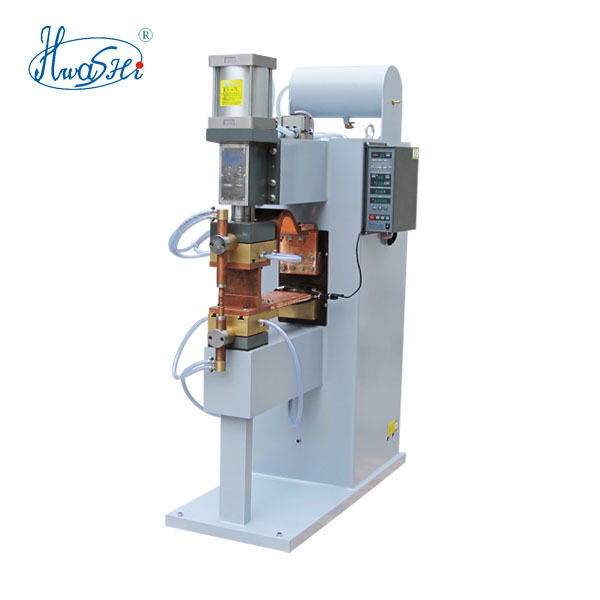

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

The HWASHI WL-MF-250K is an advanced medium frequency inverter spot welding machine designed for precision metal sheet welding applications. This vertical type welding system utilizes innovative inverter technology to deliver superior performance and efficiency.

Technology Overview

This medium frequency inverter spot welder converts three-phase power supply through specialized rectification into 1000Hz AC voltage, which is then transmitted to a medium frequency transformer. The current is subsequently rectified to supply DC welding current, providing significant advantages in energy efficiency and performance.

Advanced System Features

Premium Materials

Thicker copper plates and copper belts ensure stable conductivity during welding operations, enhancing performance reliability.

Custom Electrode Processing

Customized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Key Advantages

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9 (compared to 0.4 for power frequency), significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz
Superior welding quality with stable nugget size, minimal spatter, and excellent surface finish
Reduced energy consumption and infrastructure requirements
User-friendly interface with multiple welding parameter storage and real-time monitoring

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 year

Application Examples
